White smooth finish
Creates a clean industrial surface that is easier to inspect than wrapped insulation in many exposed areas.
Revêtement isolant thermique
Revêtement isolant thermique et économie d'énergie à l'aérogel
Aerogel Thermal Insulation & Energy-Saving Coating is a white, smooth thermal insulation coating system for tanks, pipelines, roofs and high-temperature equipment where heat loss and condensation must be reduced.
Présentation du produit
Présentation du produit
Aerogel Thermal Insulation & Energy-Saving Coating is a white, smooth thermal insulation coating system for tanks, pipelines, roofs and high-temperature equipment where heat loss and condensation must be reduced.
Product System
Aerogel Thermal Insulation & Energy-Saving Coating
Aerogel Thermal Insulation & Energy-Saving Coating is a white, smooth thermal insulation coating system for tanks, pipelines, roofs and high-temperature equipment where heat loss and condensation must be reduced.
Core Advantages
Thermal control
Helps reduce surface temperature, heat loss and condensation risk when applied at the designed thickness.
Complex-shape coverage
Sprayable or brushable coating reaches elbows, valves, tanks and irregular equipment surfaces.
Technical Parameters
| Main substrate | Steel tanks, pipelines, roofs, kiln shells and industrial equipment |
|---|---|
| Finish | White matte or smooth thermal insulation film |
| Application method | Layer-by-layer spray, brush or trowel application |
| Acceptance focus | Thickness, surface temperature target, adhesion and weather exposure condition |
| Certification Support | CE / RoHS / ASTM / EN documentation support |
| Construction Control | Confirm substrate preparation, primer compatibility, wet film thickness and curing condition before batch application. |

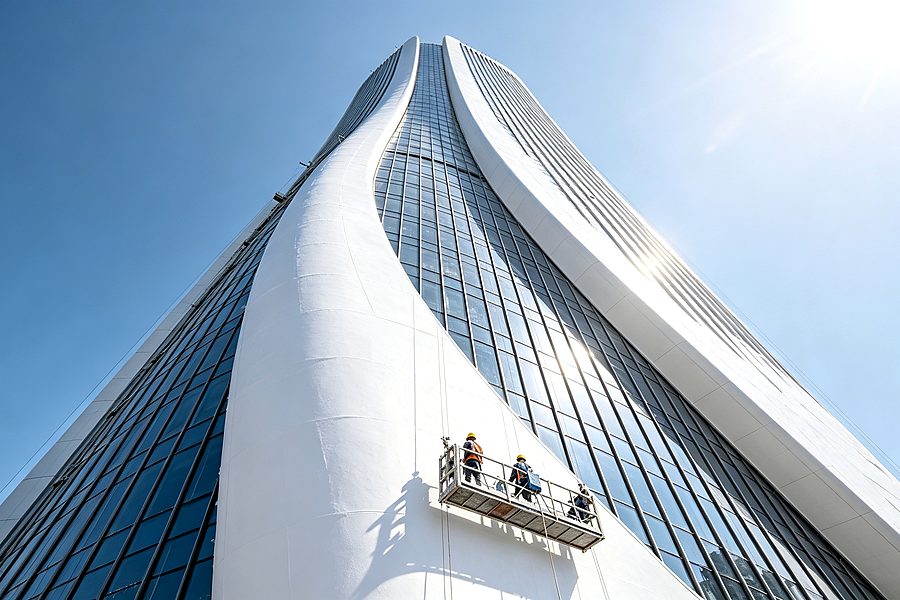

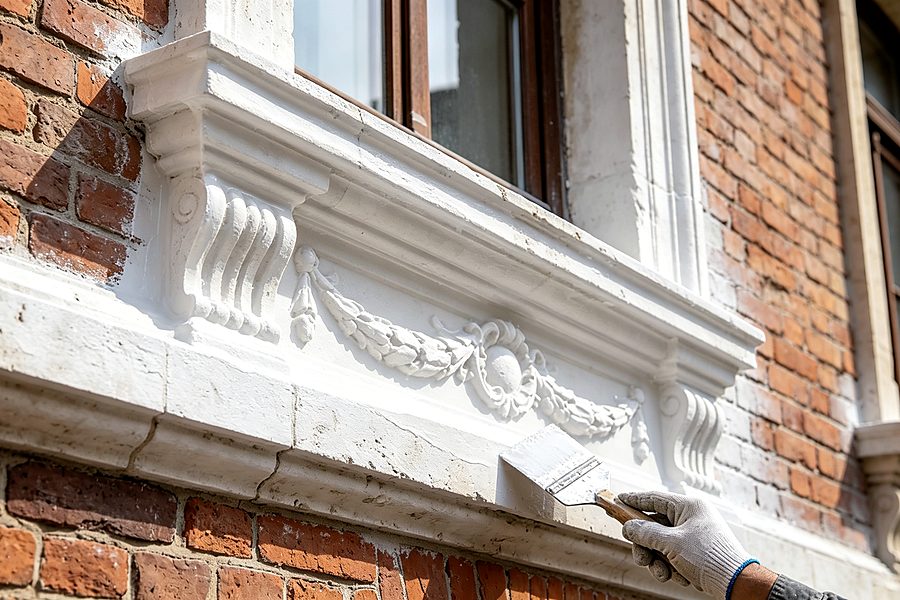

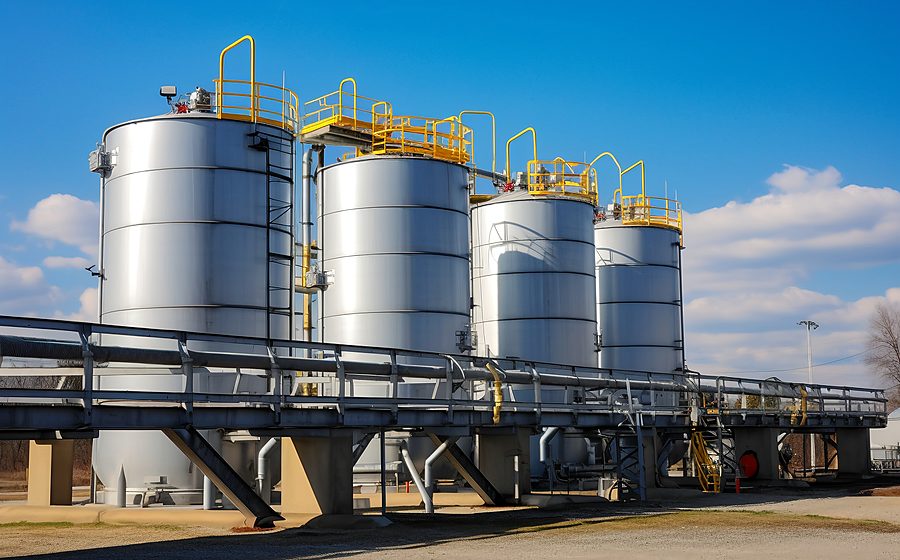

Application Scenes
Application Scenes
REFERENCE TDS DATA
Aerogel Insulation Coating Reference Data
Key data below is extracted from the June 2026 aerogel coating technical document for insulation, heat preservation and anticorrosion use.
Core Features
Waterborne ceramic-fiber emulsion
White thick waterborne ceramic fiber emulsion coating for thermal insulation, heat preservation and corrosion protection.
Low thermal conductivity
The document lists thermal conductivity <=0.032 W/(m.K), density 80-150 g/L and bond strength >=0.7 MPa.
Fire-retardant and RoHS compliant
The reference data lists UL94 V-0 flame-retardant level and RoHS harmful-substance compliance.
Technical Parameters
| Color / form | White, thick waterborne ceramic fiber emulsion |
|---|---|
| Packaging | 5 L / 12 L / 25 L |
| Usage | 1 kg can spray about 2 m2 and reach about 1 mm thickness; one-pass application can form the coating, while high-temperature conditions are recommended to use 2 passes |
| Drying time | 4-12 h depending on temperature and humidity |
| Resistance | Water resistance 96 h; alkali resistance 48 h |
| Shelf life | 36 months in sealed dry storage |
Application Fields
Concrete, putty wall, emulsion-painted wall, glass, metal, steel structure, pipeline, storage tank, roof, balcony, underground room and other building or industrial surfaces.
Product Advantages
Provides coating-type insulation for complex surfaces where wrapped insulation is difficult, helping reduce heat transfer, condensation risk and surface temperature while keeping a maintainable coating finish.
Construction Instructions
- The substrate must be dry, flat, solid and clean, without loose dust, powdering or oil contamination.
- Roller, brush, trowel or spray can be used. One-pass application can form the coating; for high-temperature conditions, 2 passes are recommended.
- If viscosity is too high, dilute with clean water but keep added water within 10% of coating weight. Maintain natural ventilation after application.
Paramètres techniques
Paramètres techniques
- Application
- Toitures d'usine, réservoirs, tuyauteries, murs et équipements
- Niveau de performance
- Selon objectif d'isolation et température de surface
- Support adapté
- Métal, béton, panneaux de toiture, réservoirs et tuyaux
- Système recommandé
- Primaire anticorrosion ou bouche-pores + couche aérogel + finition protectrice
- Caractéristiques
- Faible conductivité, isolation mince, économie d'énergie et formule à l'eau
- Certifications
- Devis projet
- Devis selon surface, épaisseur, emballage et port de destination
- Échantillons
- Échantillons payants et dossier technique disponibles
- Personnalisation emballage
- Support OEM/ODM couleur, étiquette, emballage et documents export
Notes d'application
Notes d'application
01
Support adapté: Métal, béton, panneaux de toiture, réservoirs et tuyaux
02
Système recommandé: Primaire anticorrosion ou bouche-pores + couche aérogel + finition protectrice
03
Caractéristiques: Faible conductivité, isolation mince, économie d'énergie et formule à l'eau
